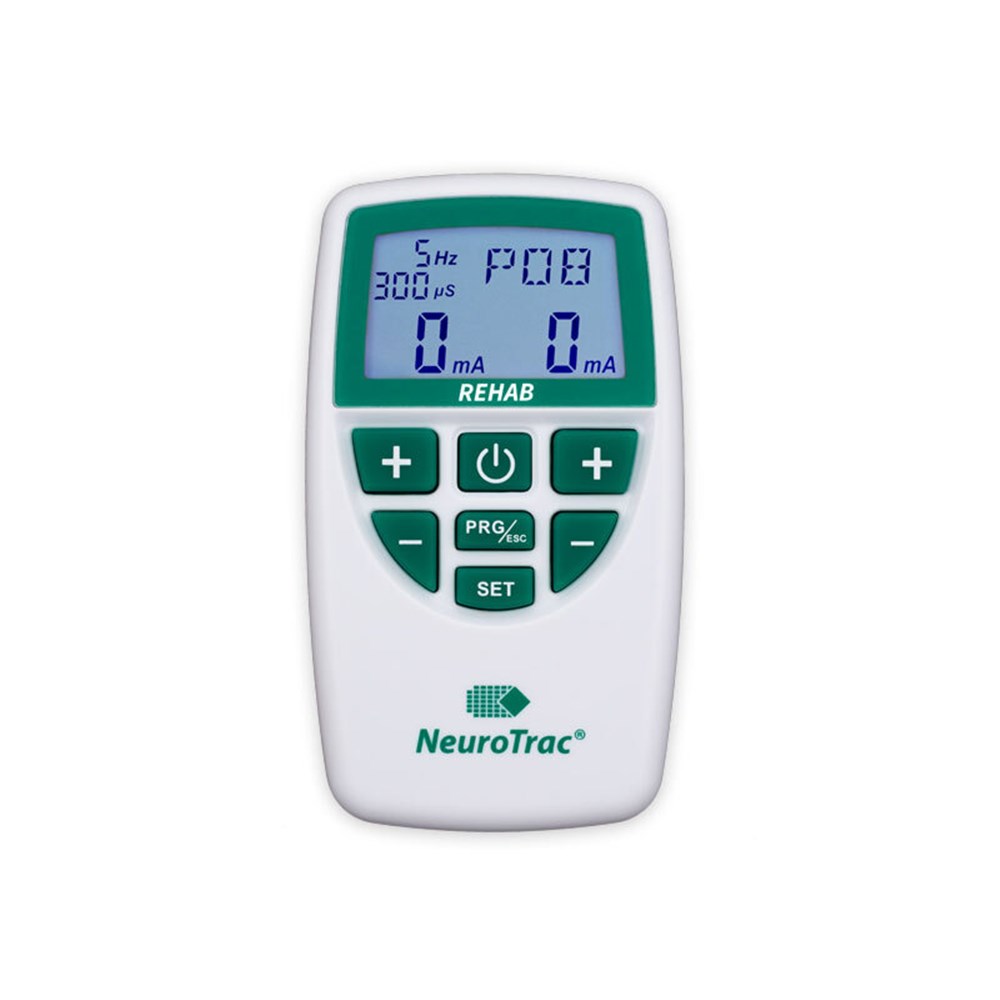

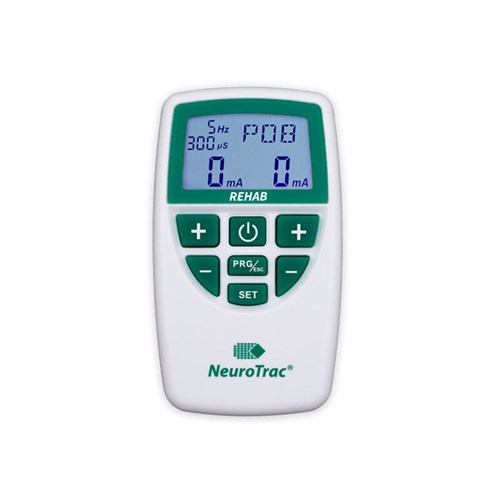

Neurotrac Rehab TENS / EMS

The Neurotrac Rehab TENS / EMS is a dual channel TENS and NMES device with remote switch controlled programs.

Features:

• Dual channel TENS and NMES
• 10 preset TENS programs, 10 preset Neuromuscular Stimulation programs. The wired remote switch control of mA by the patient (to speed up the neuro-muscular re-education) facilitates a range of rehabilitation protocols, including foot drop
• 2 customisable TENS and 1 customisable remote STIM program
• Lock mode function for measuring and recording home compliance (mA and total time used)
• Clear bright backlight LCD allows the display to be read more easily in low light or dark conditions
• Keypad with bigger buttons for ease of use
• Compact, light and reliable

Technical Data:

• Dual channel: individually isolated circuits
• Amplitude: 0-90 mA into 500 Ohm load; indication only. Actual mA will tend to be less than indicated due to electrode impedance: at 1000 Ohms load (Electrodes in poor condition) the maximum will be limited to 70 mA, at 1500 Ohms load the maximum will be limited to 65 mA
• Type: constant current, maximum output voltage 180 Volts +10 / -30 Volts
• Waveform: asymmetrical, rectangular bi-phasic with zero DC current
• Selectable pulse width: 50 v¨S 450 ŒºS [2% accuracy]
• Pulse rate selection: in the continuous mode 2 200 Hz [2% accuracy]
• Mode: continuous, burst or modulated
• Burst mode: bursts of 9 pulses [200 ŒºS] at 150 Hz or 185 Hz, over 2 seconds
• Modulation mode: 6-second cycle of concurrent width modulation and pulse repetition rate modulation. TENS 7: Width starting at50 v¨S and increasing exponentially to 250ŒºS in 3 seconds and then returning back to 50 v¨S in the next 3 seconds. Rate starting 20 Hz, increasing exponentially to 85 Hz and then returning to 100 Hz. TENS 8: width fixed at 200 ŒºS. Rate starting 32 Hz, increasing exponentially to 100 Hz over 3 seconds and then returning to 32 Hz in the next 3 seconds
• Time duration of the custom programmes selectable: 1 minute to 12 hours
• Low battery indicator: If the battery goes below 6.9 volts +/- 0.2 volts the battery symbol will flash on/off once every second
• If the battery voltage is below 6.6 (+/- 0.2) volts the unit will not turn on.
• Open electrode detect: If an open circuit is detected at the output of channel A or B the output current will be reset at zero

Physical dimensions:
119.2 x 69 x 28.7mm

Weight:
0.07kg without battery, 0.1kg with battery

Environmental conditions for use:
+5 to +40 degrees centigrade. 15-93% humidity

Environmental conditions for storage & transport:
-25 to +70 degrees centigrade. 15-93% humidity
